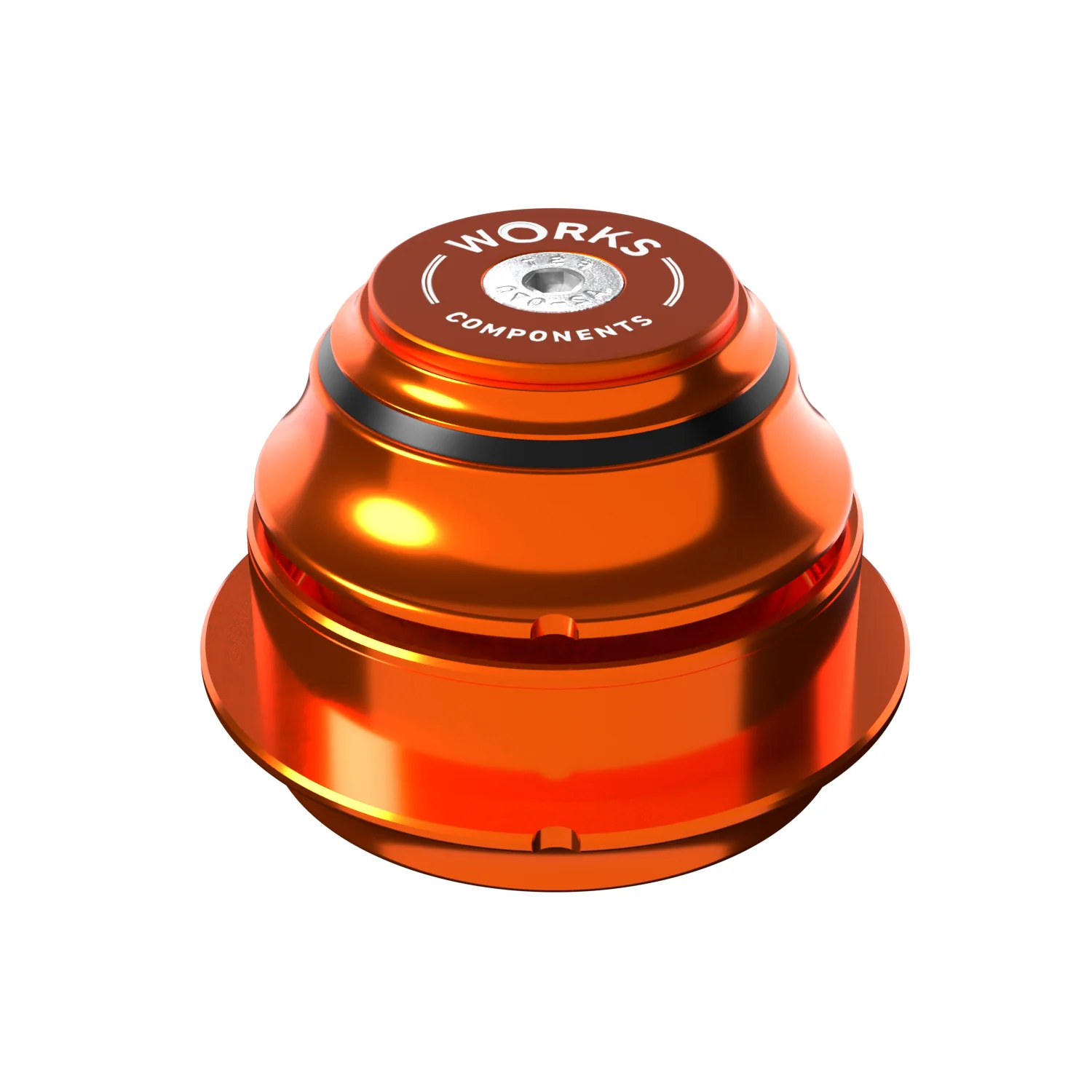

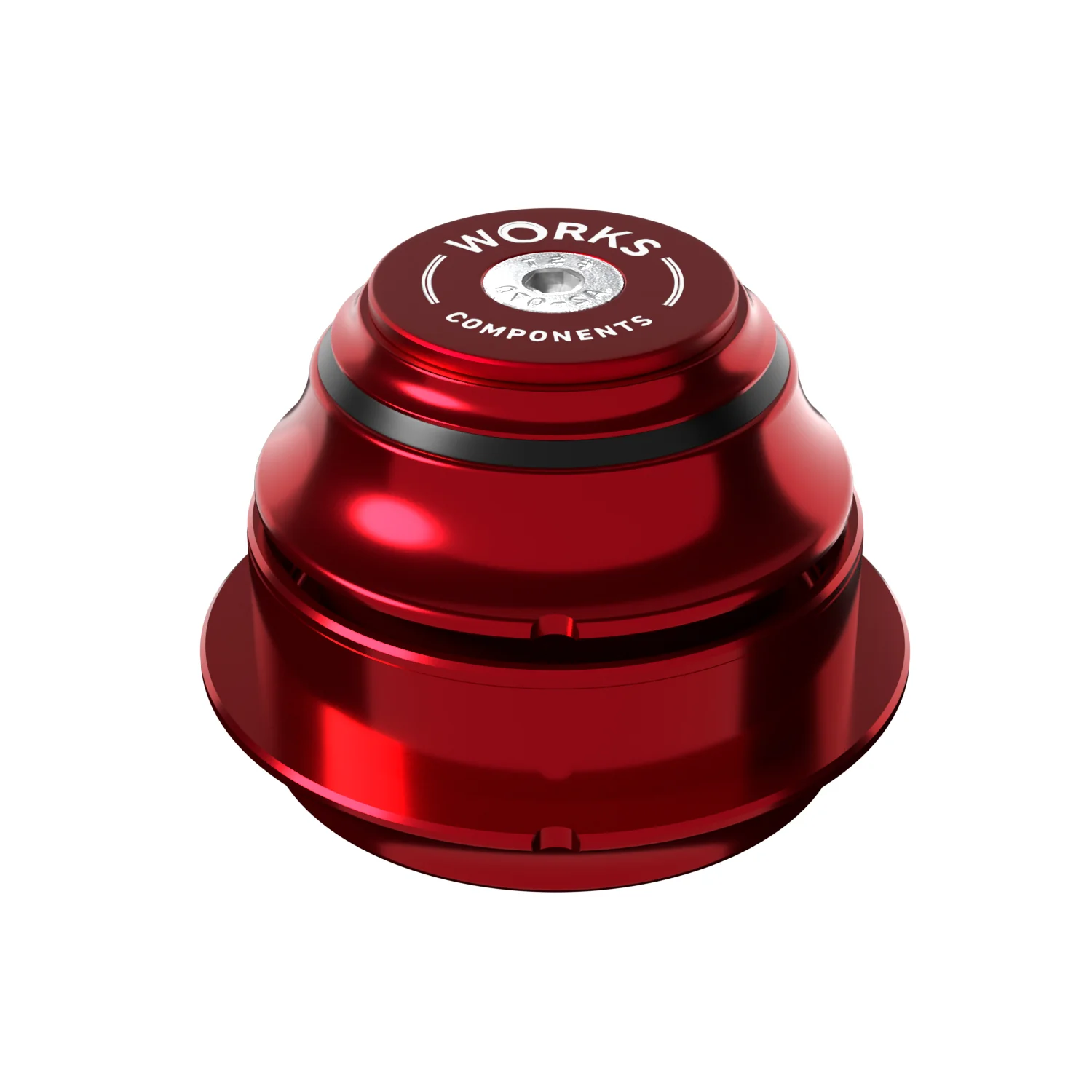

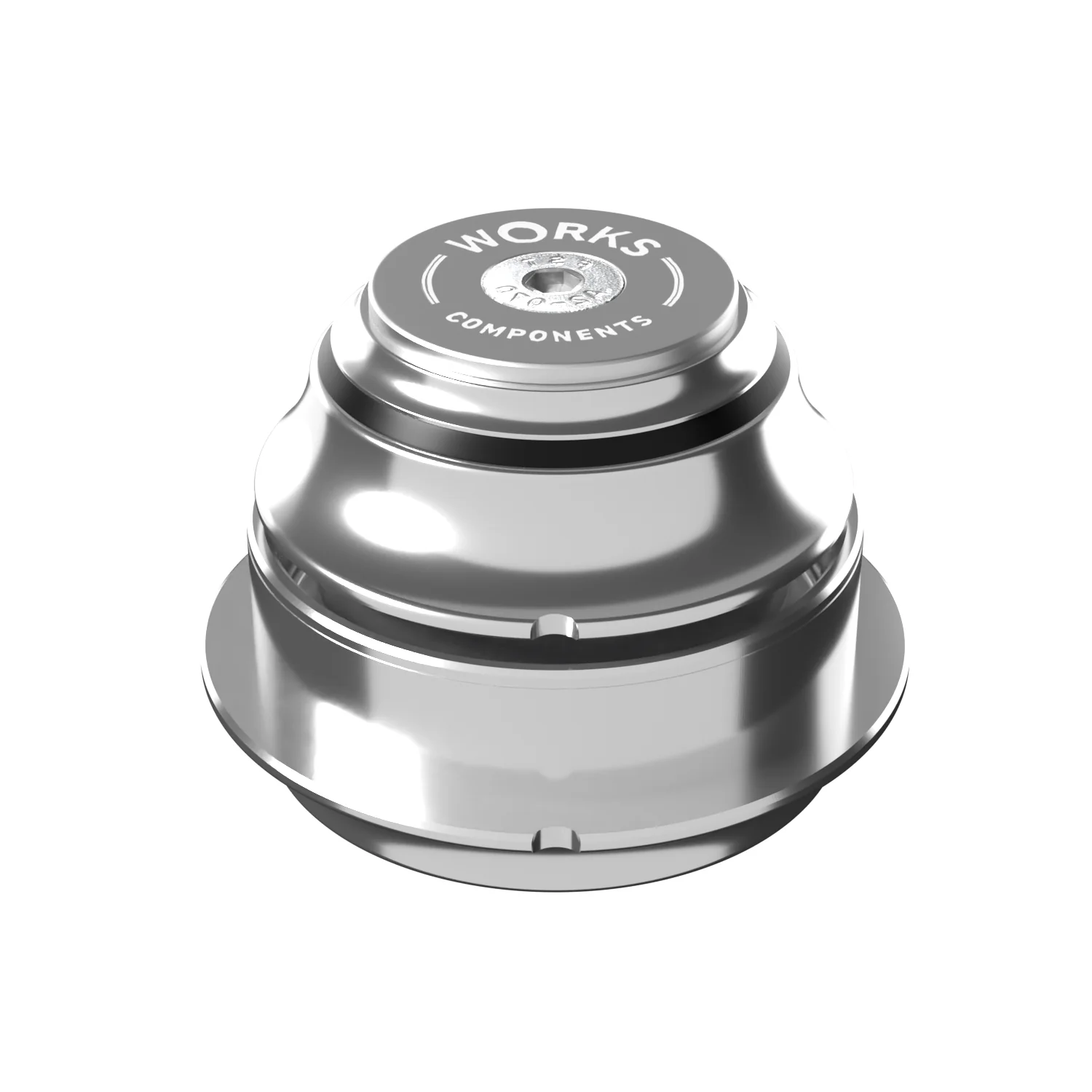

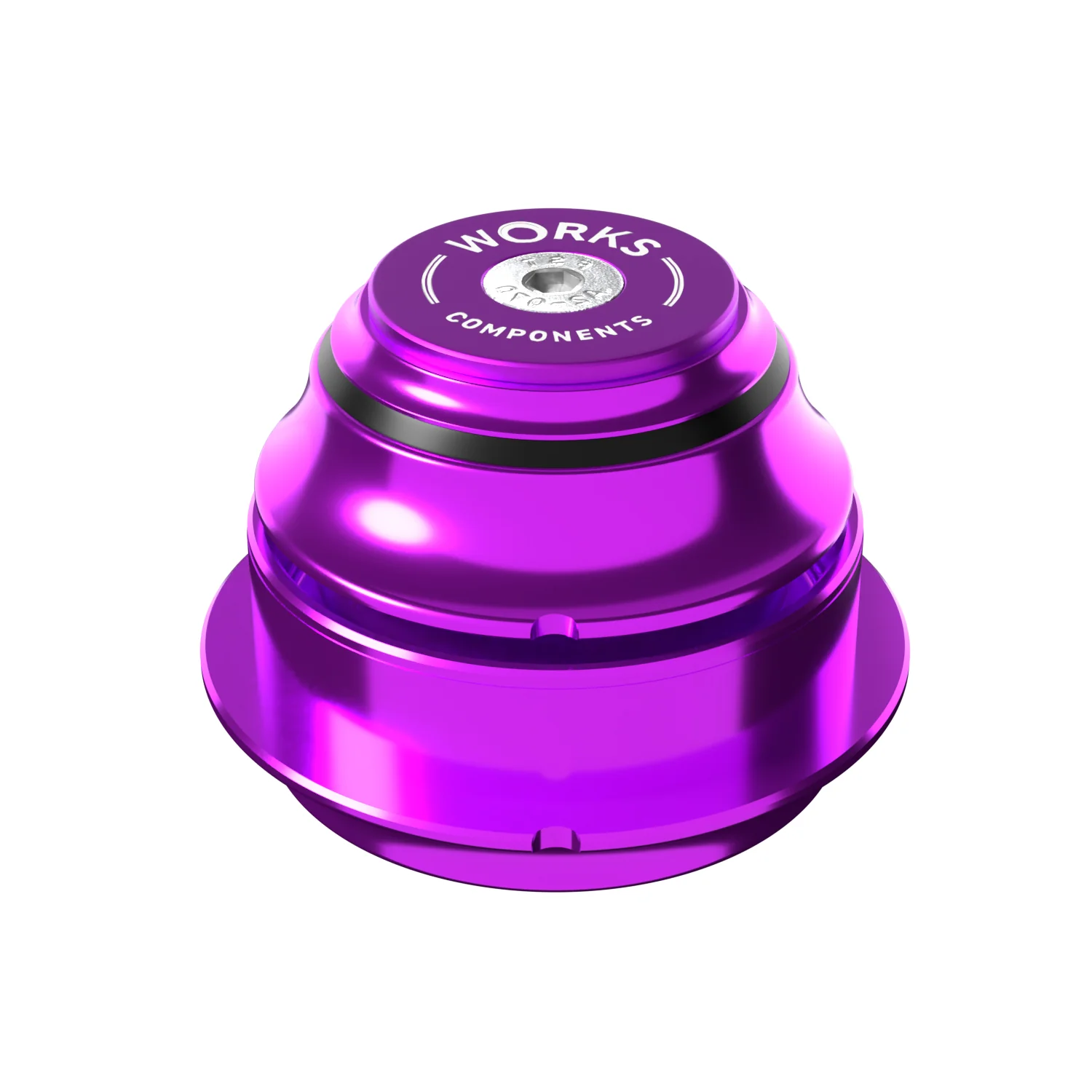

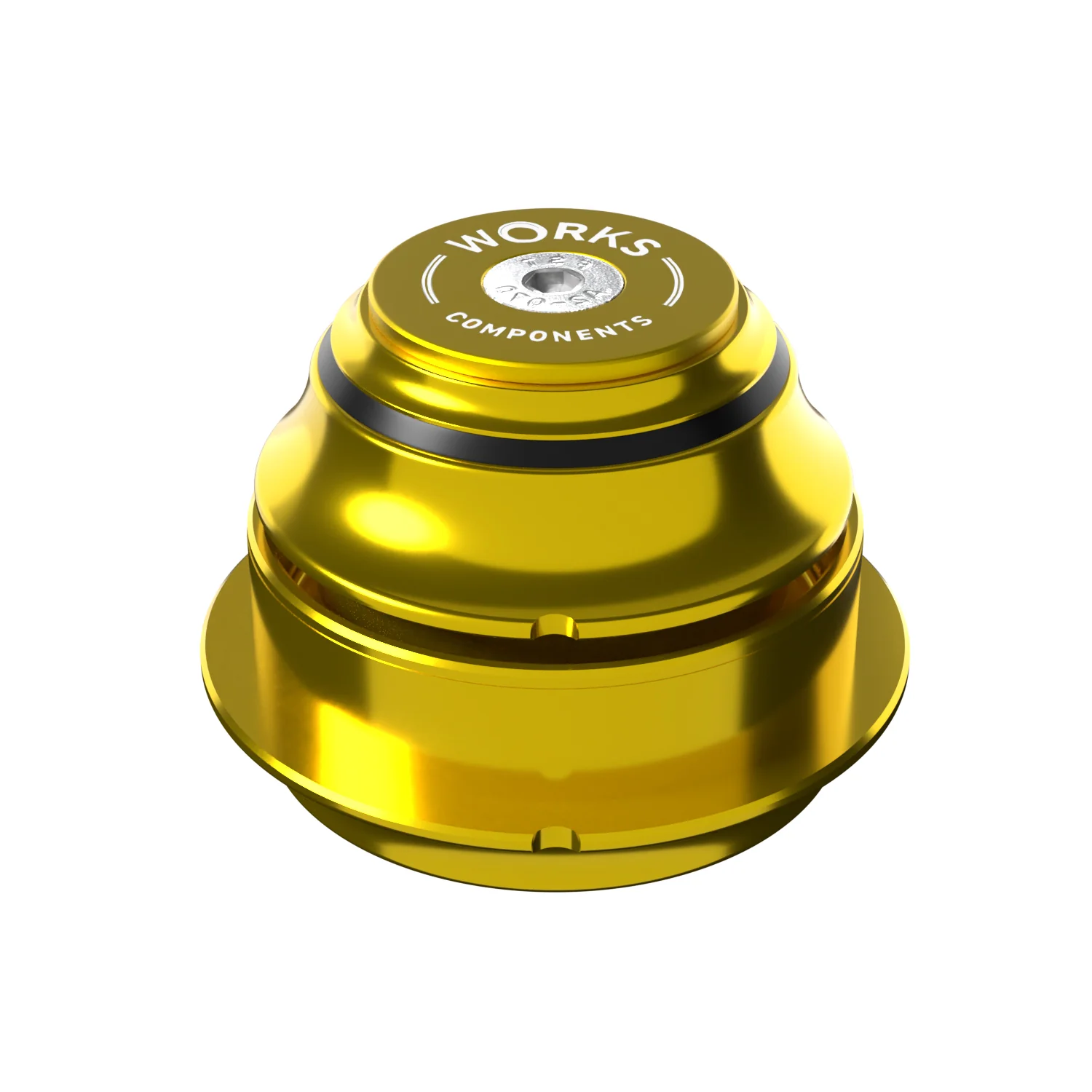

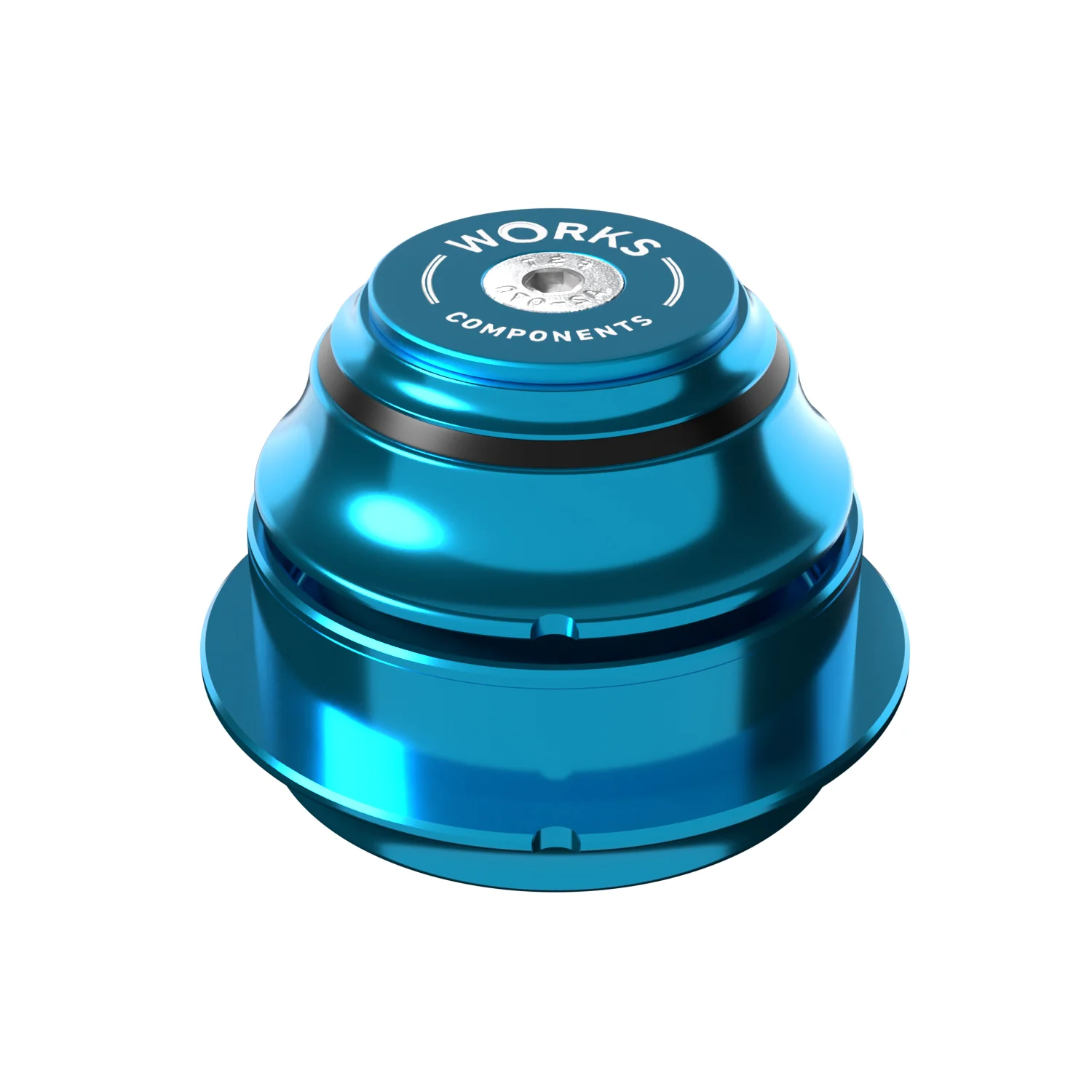

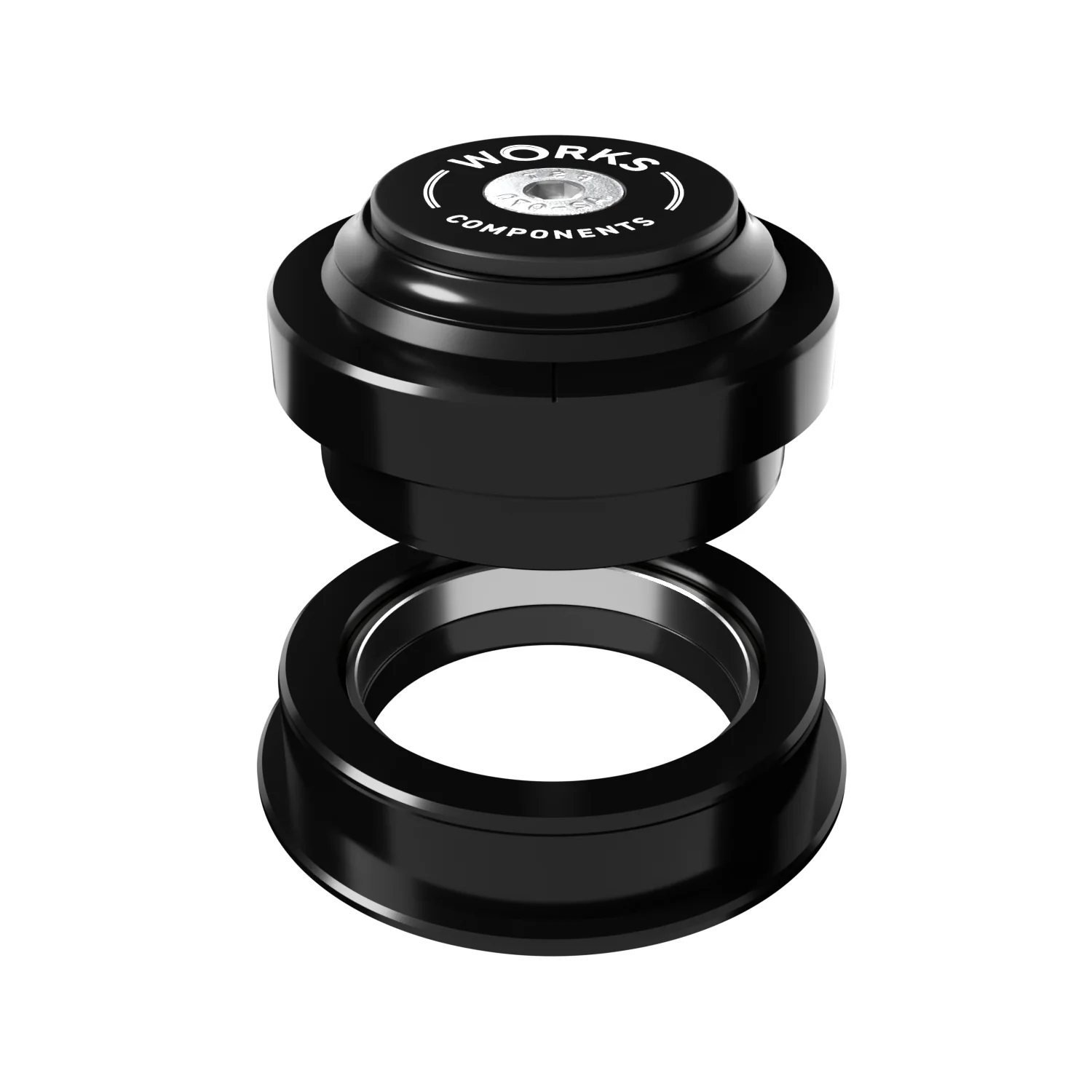

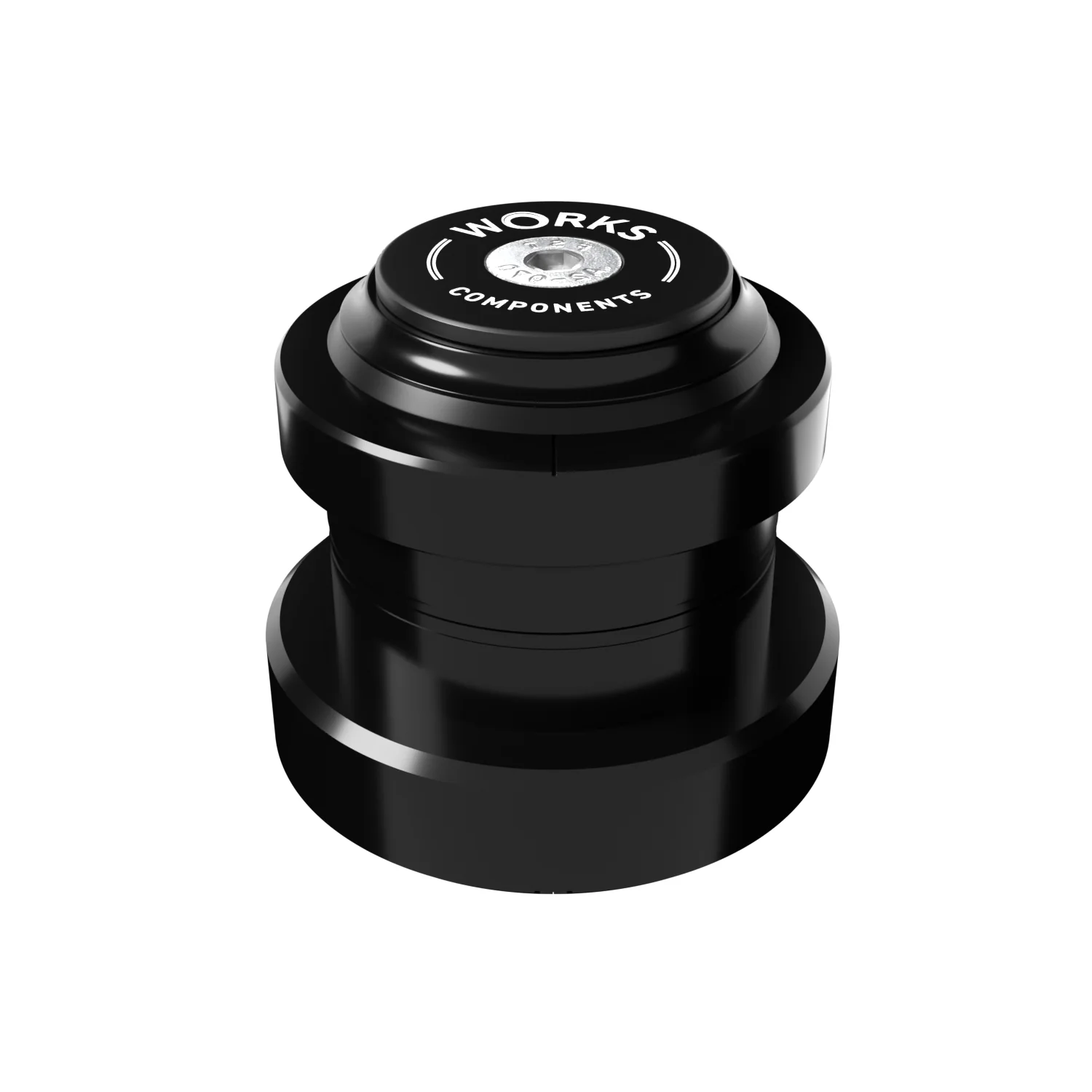

Reach Adjust EC44-EC56 - To Suit Tapered Steerer - 5mm

Reach adjust headset offering +/-5mm adjustment. Designed for frames with a 44mm upper and 56mm lower internal headtube using a tapered (1 1/8" to 1 1/2") steerer tube. CNC-machined in-house in the UK from 6082-T6 aluminium and finished with a durable anodise finish.

Reach Change: +/- 5mm

Fits Headtube Internal Diameter: Upper - 44mm: EC44
Fits Headtube Internal Diameter: Lower - 56mm: EC56

Upper Cup Insertion Depth: 9mm
Lower Cup Insertion Depth: 14mm

Upper Cup Stack Height: 11mm - Total upper stack height including bearing cover: 15mm
Lower Cup Stack Height: 14mm

Upper Bearing: 41mm OD, 45 x 45 Degree AC sealed bearing
Lower Bearing: 52mm OD, 45 x 45 Degree AC sealed bearing

Fork Steerer Tube Size: Tapered (1 1/8" to 1 1/2")

Material: 6082-T6 aluminium

Finish: Anodised

Headset comes complete with top-cap (starnut included), bearings and crown race - all parts required for fitment.

We use the 'SHIS' standard to label our headsets. For SHIS info please refer to the Park Tools information page - Standardized Headset Identification System | Park Tool
